Project Description
HUAYO Groundnut Picking Machine known is used to separate groundnuts (peanuts) from the harvested plants or vines, also knowns as Peanut Picker. This machine automates the picking process, which involves detaching the peanut pods from the plants after they have been dug up from the soil.
The HGP-8000 Goundnut Picking Machine is tractor driven, with big wheels . It can move to the field conveniently, and work everywhere.
The Peanut Picker includes two main parts: Powerful thresher , and automatic Conveyor. Farmers drop Peanut straw into the big Feeding inlet. The Peanut will be picked up efficiently, cleaned by fan, and conveyed higher. Picked Peanuts can load truck, or pack into bags directly. The HGP-8000 Peanut Picker can produce 1-2 t/h.
The Groundnut Picker is not suitable for dry peanuts, but also for fresh ones with good performance.
How a Groundnut Picking Machine Works:
- Feeding: The harvested groundnut plants, with peanuts still attached to the vines, are fed into the machine.
- Picking Mechanism: The machine’s rotating drums or beaters strip the peanut pods from the vines. This process gently detaches the pods without damaging the peanuts.
- Separation: The machine then uses airflow, screens, or other separation methods to cleanly divide the peanut pods from the remaining plant material (leaves, stems, etc.).
- Output: Clean peanut pods are collected, while the leftover plant material (straw) is discharged separately for disposal or use in animal feed.
Technical Parameters of the Groundnut Picking Machine
Model | HGP-8000 |
Function | Picking Groundnut from harvested plants |
Power | 35HP Tractor , 22kw Electric Motor |
Outsize | 6550*2000*1800 mm |
Weight | 950 kg |
How do the Peanut Picking Machine work ?

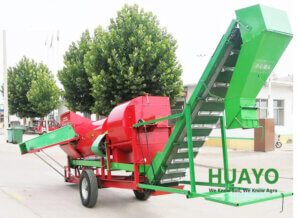

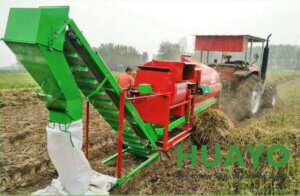

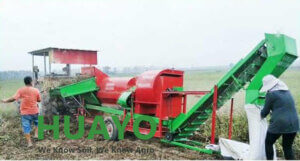

Groundnut Picking Machine Pictures
Big wheels with frame, large feeding let, Double screen mesh, strong belt
Groundnut Picking Machine manufacturing in HUAYO AGRO
Tractor driven Peanut Picker Package for delivery
