Project Description

The 9FSG series Corn Grinder is Hammer mill , which is ideal grinding machine for home use and farms.  It can be used for both grains and straw.

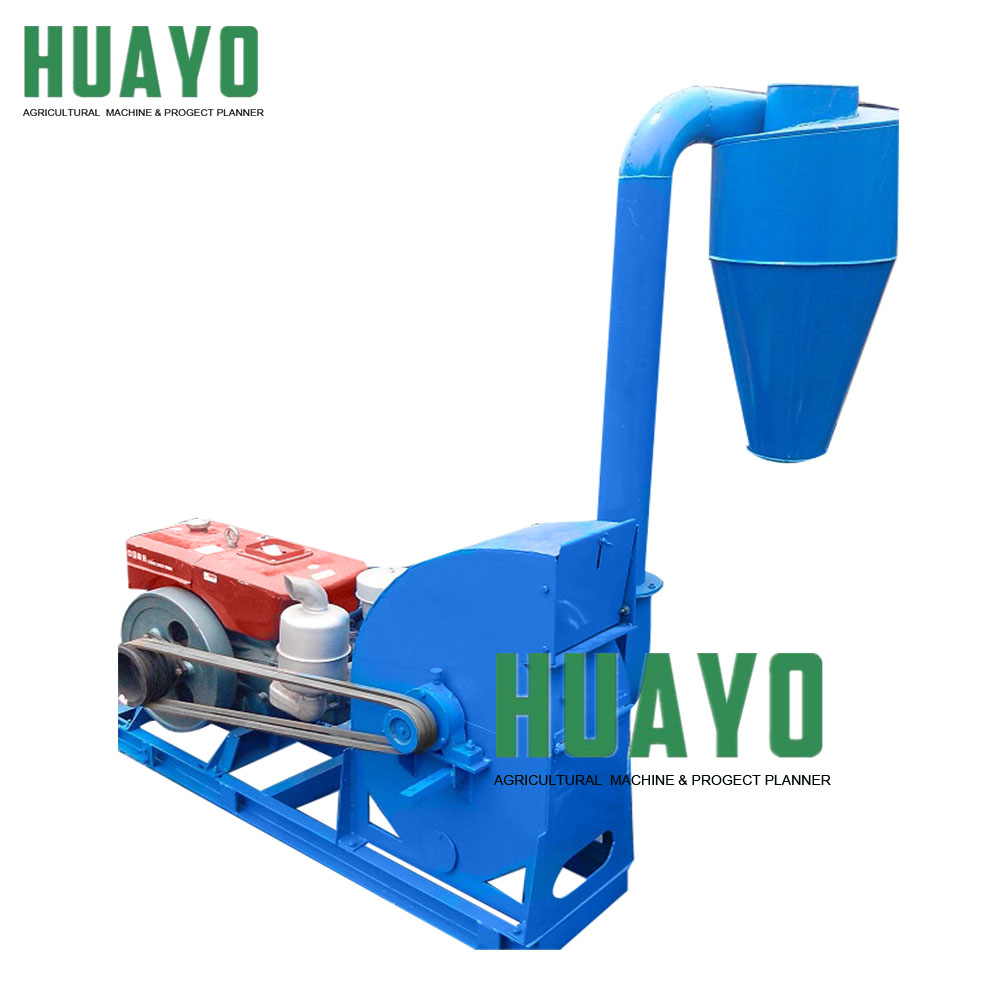

Both grains and straw can be crushed and milled in the high rapid rotating hammer constantly, under the centrifugal pull, the small fragment coming out from the siever.  Then with the suction force of blower the shatter down from the cyclone naturally.

Advantage:

  • Multi purpose usage.  both grains and straw
  • Grian crushing size customized by change sreen mesh
  • Straw cutting length adjustable

Technical parameter

Model Motor Capacity Weight Size
9FSG-320 2.2kw 200-300 kg/h 50 kg 750*450*770 mm
9FSG-360 5.5kw 300-800kg/h 110 kg 650*600*1050mm
9FSG-400 7.5kw 500-1000kg/h 160 kg 700*650*1050mm
9FSG-420 11kw 1000-1500kg/h 180 kg 1050*680*1200mm
9FSG-500 15kw 1500-2000kg/h 200 kg 900*850*1250mm
9FSG-600 22kw 2000-3000kg/h 500 kg 1350*950*1550mm

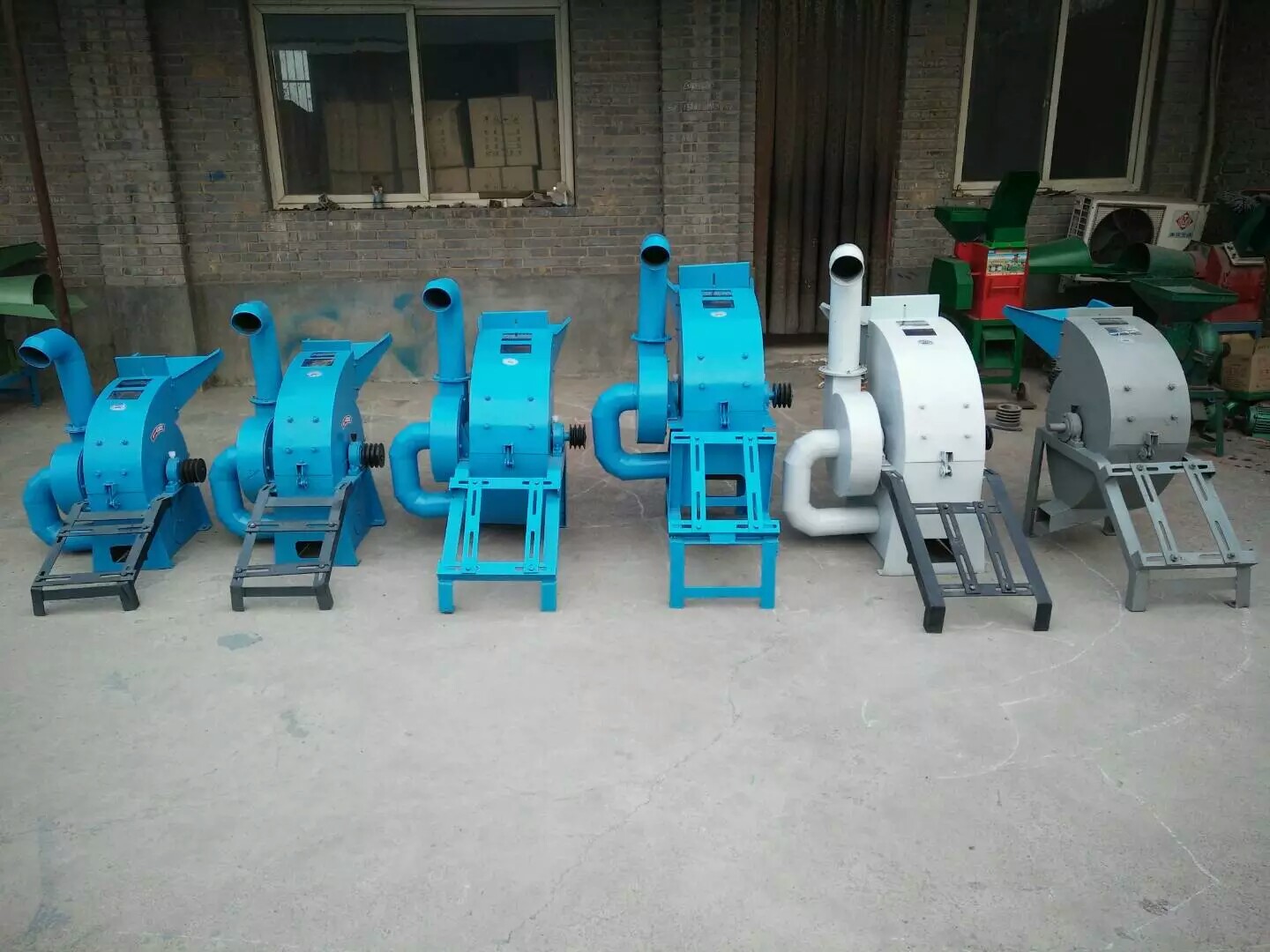

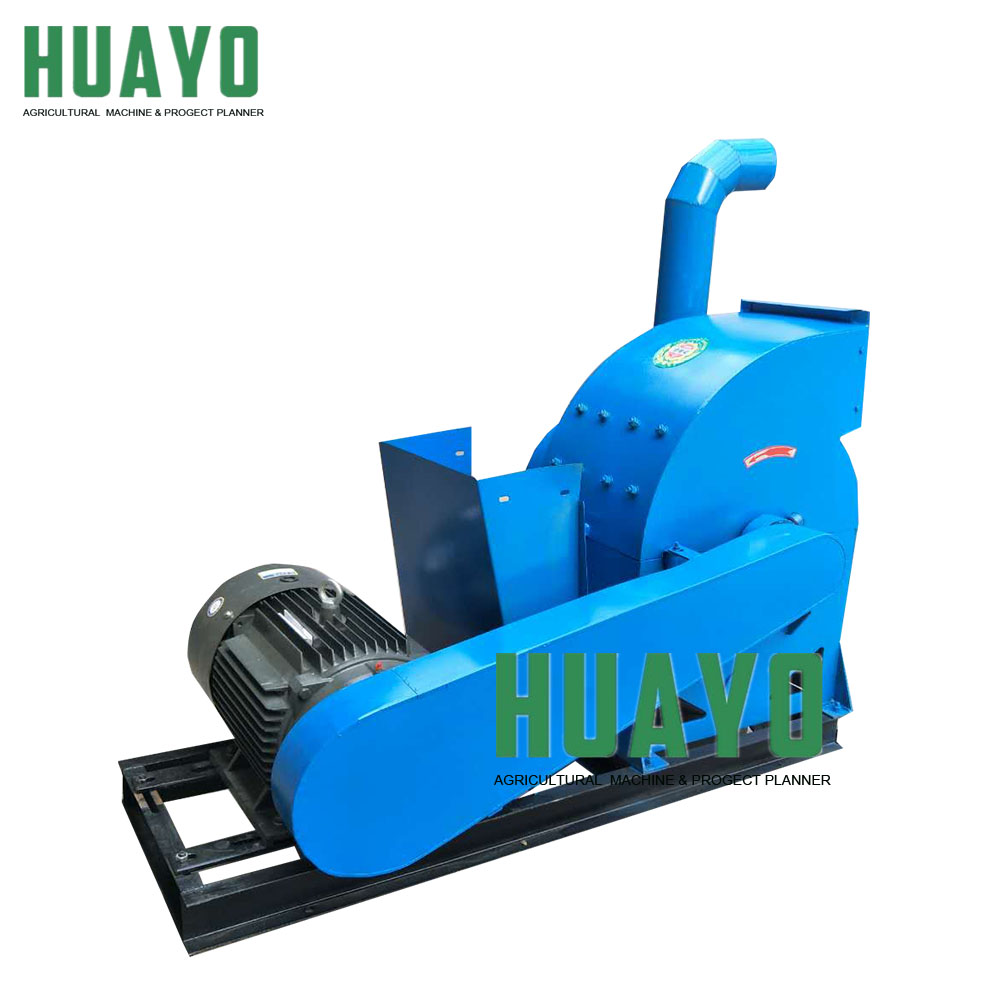

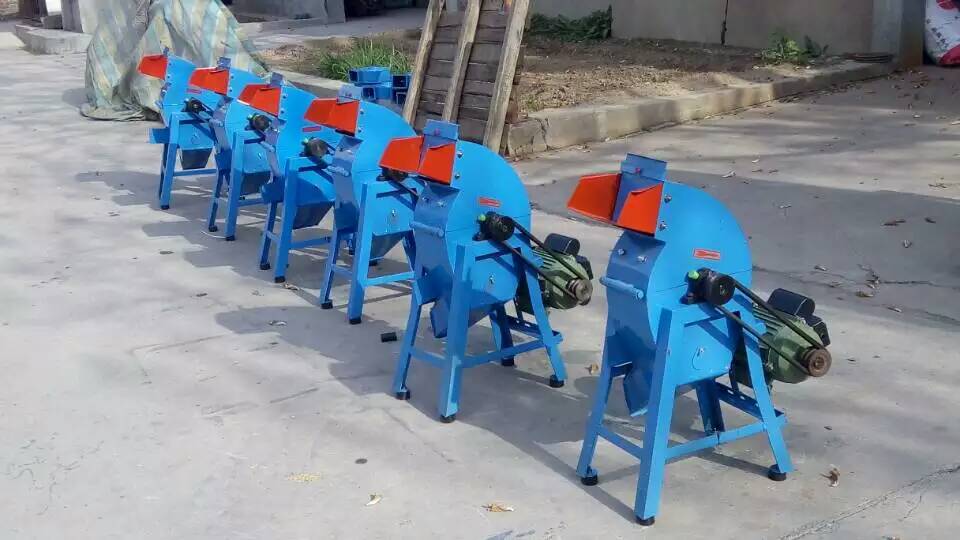

Pictures of Corn Grinder

The Corn Grinder is useful grinding machine for farmers.  It can be used for both grains and straw.

3mm Corn grinded by the hammer mill grinder

8mm Corn pellet

Crushed wheat straw and corn cob by the hammer mill
