Project Description

The Disk mill is grinding machine , which is good for making fine powder, including corn, wheat, pepper, turmeric, herb, etc. The powder size is about 80-100 mesh.  The disk mill grinding machine can grind dry and wet granular crops to cook delicious food. For example, this machine can grind wet bean into juice to make Toufu in China. The main part is the disc in the machine to working together, and then to grind fine powder.

The Disk Mills are suitable for very fine grinding of medium particle sizes of soft to hard,  temperature-sensitive solids. The material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth.
The grinding parts are available in hardened steel cast, manganese steel, hardmetal tungsten carbide and zirconium oxide to prevent undesired abrasion.

The HUAYO Disk Mill is ideal for extremely fast grinding of soft to hard, brittle, tough, fibrous and moist materials down to analytical fineness. Grinding is performed by oscillations of the grinding set on a vibrating plate with extremely high pressure, impact forces and friction.
Grinding sets are available in various steel types, hardmetal tungsten carbide, agate and zirconium oxide to prevent undesired abrasion.

Available grinding size :

0.4mm、0.6mm、0.8mm、1.0mm、1.2mm、1.5mm、1.8mm、2.0mm、2.5mm、3.0mm、4.0mm、5.0mm、6.0mm、8.0mm、10.0mm

Application available:

  • Cyclone for dust collecting
  • Self-feeding input
  • Diesel engine available
  • Screen mesh changeable

Technical Parameter

Product name Wheat Disc Flour Mill Grain Grinder Machine
Model NO. HFS-23 HFS-35
Production Capacity ≥ 300-500kg/h ≥ 1000-1500 kg/h
Suitable for corn, maize, soya bean, chili, pepper, etc
Power Match 3kw 7.5kw
Voltage 380V 380V
Certification ISO9001:2015
Machine Size(mm) 450*425*520 1060*1960*1370
Spindle Speed (rpm)
Net Weight 50 kg 150kg

Double input Disk mill

Self-feeding Disk mill

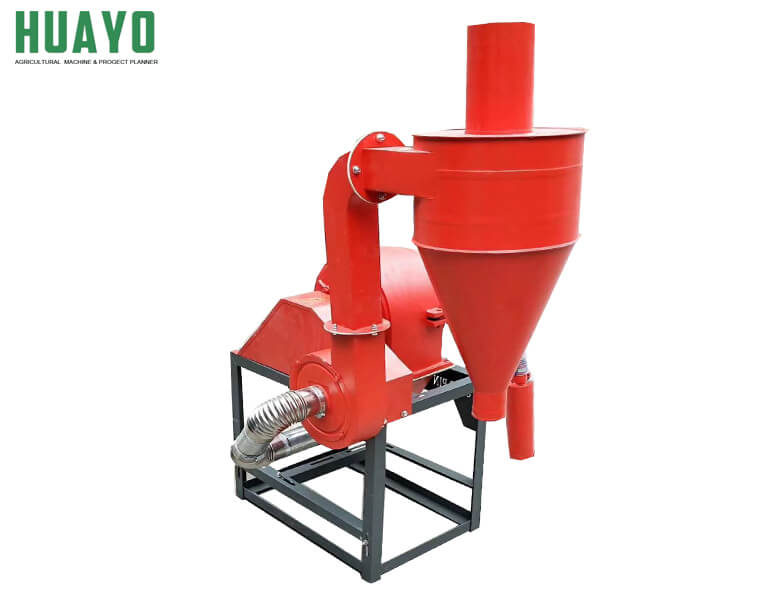

Cyclone and self feeding Disk mill
