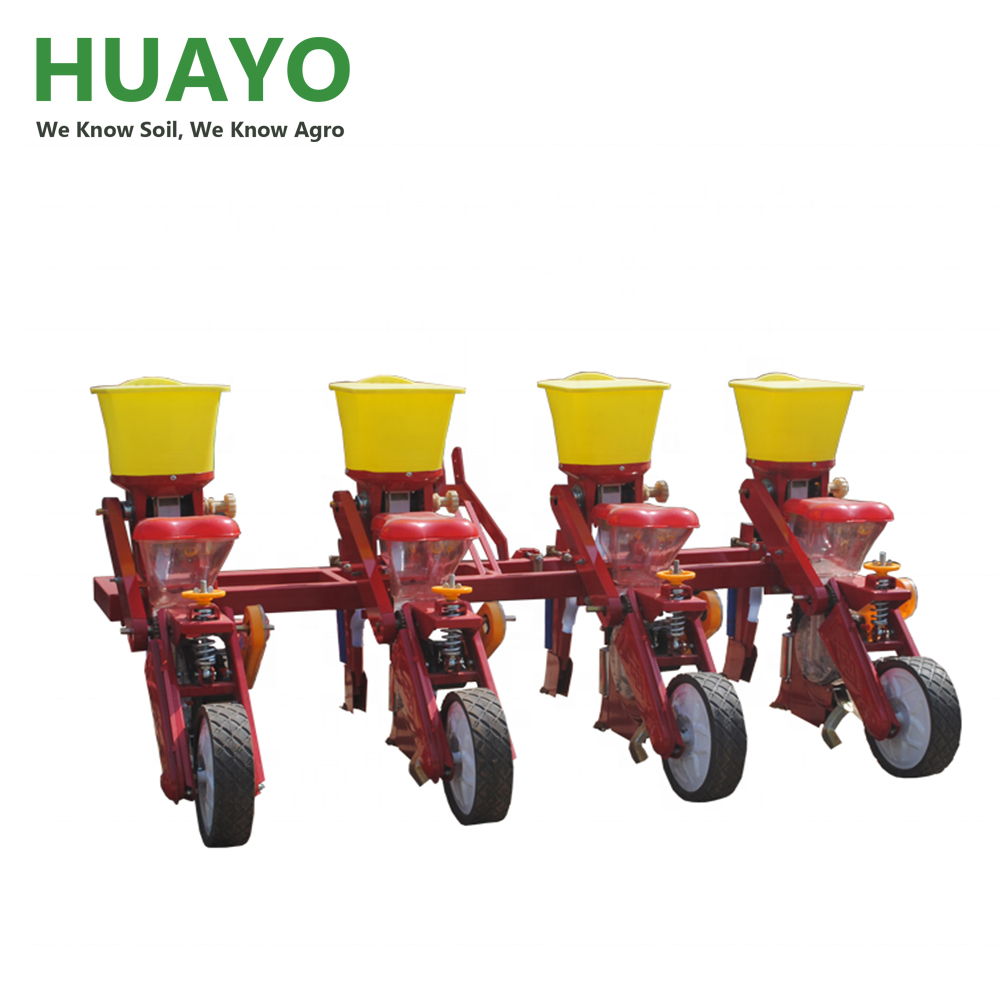

Introduction of tractor driven maize planter

Tractor driven Maize Planter with Fertilizer is used to plant corn, soybean, peanut and fertilize at same time.

It is driven by tractor and can plant 2-8 row at one time, which highly improve planting effciency.  With fertilizer box, it can plant corn and fertilize at same time.

The maize planter is specially designed and also used for no-tillage fileld .   It can single grain precision sowing, or double grain precision sowing corn.

Besides, It can strip grain fertilizer, a furrow to complete the fertilization, seed-furrow, seeding, soil covering, suppression and other procedures.

The maize platter has high sowing precision, and the qualified index of grain number reaches more than 80%.

• Both Row space and Seed Space adjustable.

• It is applicable to fertilizer and seed in the plains and hilly areas.
• There are two containers for seeds and fertilizer respectively.

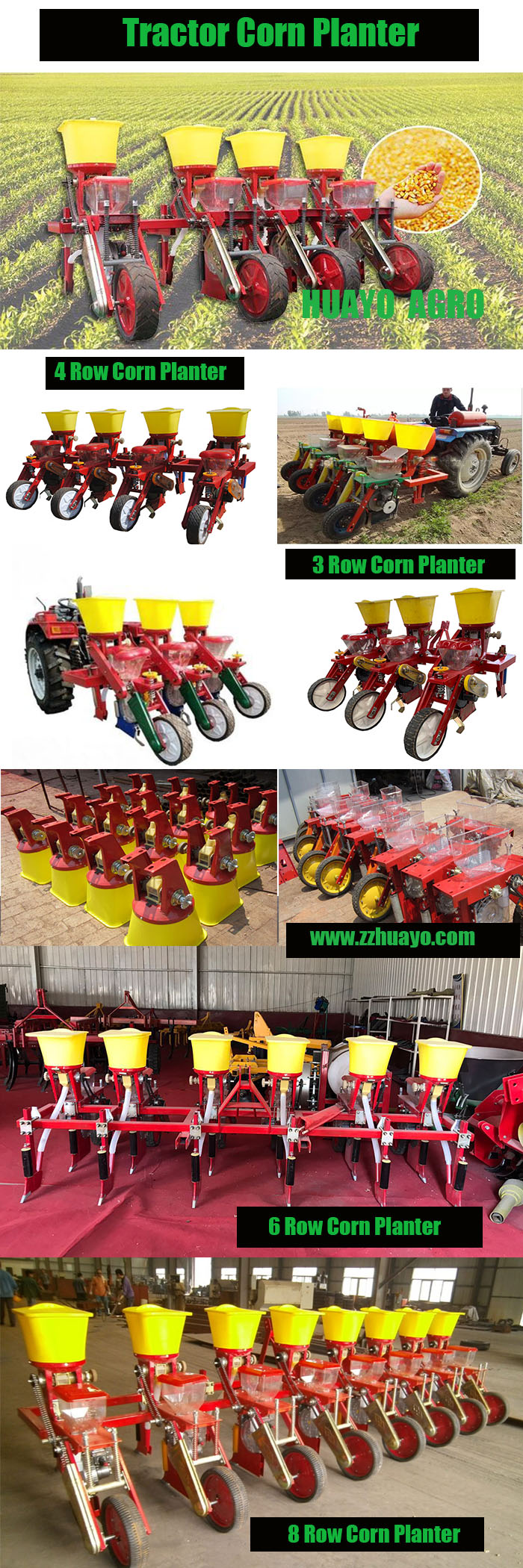

• Various machines include two- seven planting rows.
• Suitable for 15-100hp 4wheel tractor, its seeding rows could be 2-7rows to meet different request of the customers.
• The gears are connected by chains; at the bottom are wheels rolling on theground.
• With the features of Seeding uniformity, high working efficiency, saving seeds, and the depth of seeding

Technical Parameter of tractor driven maize planter

Models	Unit	2BYF-5	2BYF-6
Overall dimension	mm	1440×2250×980	1440×2600×980
Rows	row	5	6
Row spacing	mm	428-540	428-510
Plant spacing	mm	Adjustable,140/173/226/280
Ditching depth	mm	60-80
Fertilization depth	mm	30-50
Sowing depth	mm	30-50
Capacity of fertilizer tank	L	86	86
Capacity of seed box	L	8.5× 5	8.5 ×6
Weight	kg	300	350
Linkage		Three-pointed mounted
Matched power	hp	40-50	50-60
